ASTM D5276 IEC60068 Earphone Interphone Computer Height Fall Down Repeatedly Drop Fatigue Tester

ASTM D5276 IEC60068 Earphone Interphone Computer Height Fall Down Repeatedly Drop Fatigue Tester
ASTM D5276 IEC60068 Earphone Interphone Computer Height Fall Down Repeatedly Drop Fatigue Tester ASTM D5276 IEC60068 Earphone Interphone Computer Height Fall Down Repeatedly Drop Fatigue Tester ASTM D5276 IEC60068 Earphone Interphone Computer Height Fall Down Repeatedly Drop Fatigue Tester ASTM D5276 IEC60068 Earphone Interphone Computer Height Fall Down Repeatedly Drop Fatigue Tester ASTM D5276 IEC60068 Earphone Interphone Computer Height Fall Down Repeatedly Drop Fatigue Tester ASTM D5276 IEC60068 Earphone Interphone Computer Height Fall Down Repeatedly Drop Fatigue Tester

تصویر بزرگ :  ASTM D5276 IEC60068 Earphone Interphone Computer Height Fall Down Repeatedly Drop Fatigue Tester

جزئیات محصول:
محل منبع: گوانگدونگ، چین
نام تجاری: ZL
پرداخت:
مقدار حداقل تعداد سفارش: 1
توضیحات محصول جزئیات
دقت: بسته به نیاز متفاوت است قدرت: بسته به نیاز متفاوت است
کلاس حفاظتی: IP56 ولتاژ: 220 ولت
مقدار تست: 2 ست یا 4 ست عرض قطره: 350 میلی متر
ارتفاع قطره: 500 یا 1000 میلی متر سرعت تست: 5 تا 20 بار در دقیقه
چرخه تست: 1~999999 بار بعد: 1250x1500x1680mm
وزن: 250 کیلوگرم منبع تغذیه: AC220V 50Hz 5A
مدل: RS-DP-12A مواد: قاب بیرونی AL
نوع نمایشگر: صفحه لمسی
برجسته کردن:

ASTM D5276 drop fatigue tester,IEC60068 earphone interphone tester,computer height fall testing machine

,

IEC60068 earphone interphone tester

,

computer height fall testing machine

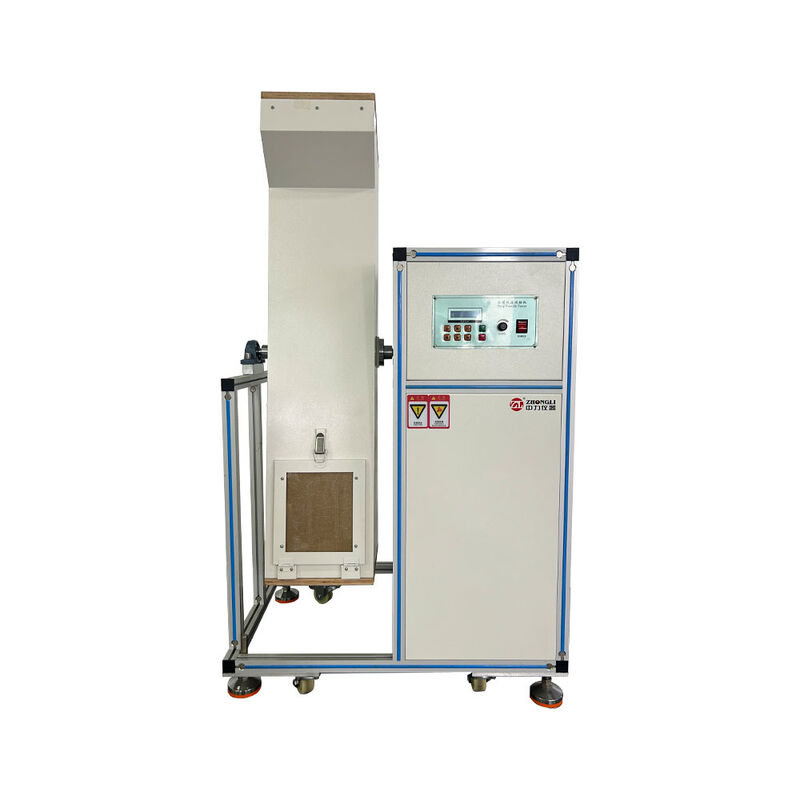

ASTM D5276 IEC60068 Earphone Interphone Computer Height Fall Down Repeatedly Drop Fatigue Tester

This machine is designed to assess the impact of unintentional product drops during actual use on product performance. It is suitable for original-gesture drop testing of mobile phones, e-readers, CDs, MP3 players, PDAs, telephones, e-dictionaries, and other consumer electronic products.

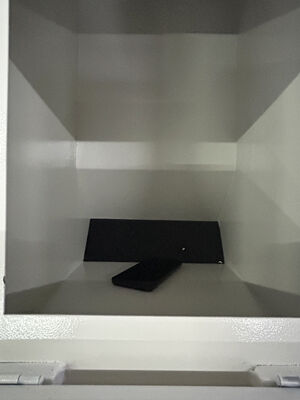

The tester is also used for continuous rolling random drop tests inside 0.5m or 1m height barrels for electronic products or components like connectors and plugs.

Key Features
  • Conforms to IEC60068-2-32 and ASTM D5276 standards
  • Available in two models: RS-DP-12 (Economic type) and RS-DP-12A (Touch screen type + AL Outer frame)
  • Adjustable drop height (500mm or 1000mm)
  • Variable test speed (5-20 times/min)
  • Programmable test cycles (1-999,999 times)
  • Includes acrylic protective cover for safety
Technical Specifications
Parameter RS-DP-12 (Economic) RS-DP-12A (Touch Screen)
Test Amount 2 or 4 sets 2 or 4 sets
Drop Width 350mm 350mm
Drop Height 500mm or 1000mm 500mm or 1000mm
Test Speed 5-20 times/min 5-20 times/min
Test Cycle 1-999,999 times 1-999,999 times
Dimensions (WxDxH) 1300x1200x1500mm 1250x1500x1680mm
Weight 165kg 250kg
Power Supply AC220V 50Hz 5A or as specified by user

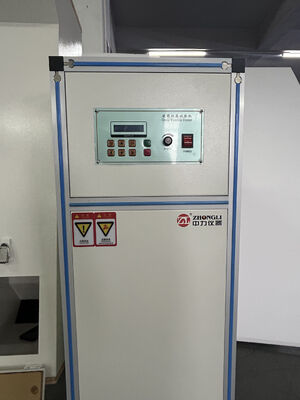

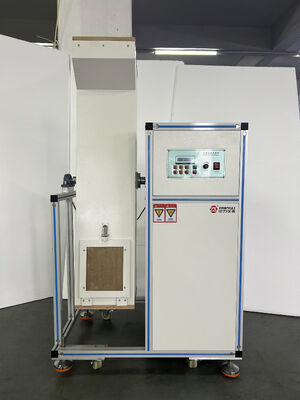

Product Images
ASTM D5276 IEC60068 Earphone Interphone Computer Height Fall Down Repeatedly Drop Fatigue Tester 0 ASTM D5276 IEC60068 Earphone Interphone Computer Height Fall Down Repeatedly Drop Fatigue Tester 1 ASTM D5276 IEC60068 Earphone Interphone Computer Height Fall Down Repeatedly Drop Fatigue Tester 2
About Zhongli Instrument Technology

We are Zhongli Instrument Technology Co., Ltd, an instrument expert headquartered in Dongguan, Guangdong, China since 2007, specializing in manufacturing lab testing equipment.

With over 18 years of experience, our products have sold well in Europe, America, and Southeast Asia markets, totaling more than 110 countries. Our equipment covers a wide range of industries including rubber and plastics, food, packaging, and electronics, suitable for scientific research units, quality inspection institutions, and academic fields.

In addition to standard machines, our R&D team can customize equipment to meet your specific requirements.

ASTM D5276 IEC60068 Earphone Interphone Computer Height Fall Down Repeatedly Drop Fatigue Tester 3
Frequently Asked Questions
1. How to choose the most suitable mechanical equipment?

Our professional team will provide recommendations based on your testing requirements and specifications.

2. What's the delivery term?

Most items are in stock. For custom orders, delivery typically takes 15-20 working days after deposit receipt.

3. Do you accept customization service?

Yes, we offer both standard and customized machines tailored to your specific needs.

4. Can we visit your factory before ordering?

We welcome factory visits and can assist with hotel arrangements and airport pickup.

5. What is your warranty policy?

We offer a 2-year warranty including technical support and parts replacement when necessary.
