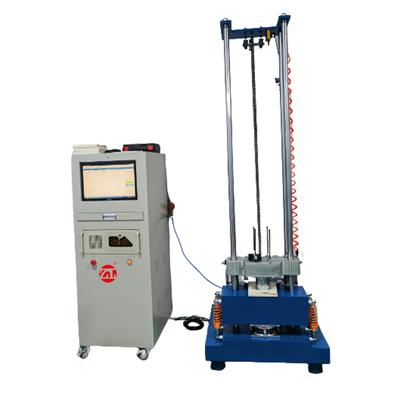

ISO 16750 Shock Testing System Accelerated Shock Test Equipment Mechanical Shock Test Machine

ISO 16750 Shock Testing System Accelerated Shock Test Equipment Mechanical Shock Test Machine

Description:

Mainly suitable for impact testing of electronic products, aerospace, ships, military, automotive components, transportation and other fields. It can be used with waveform generator for half-sine wave impact test.

Meet standards:

GB/T2423-2008, GJB150, GJB360, GJB548, GJB1217, MIL-STD-202F, IEC-68-2-27, MIL-STD-810F, MIL-STD-883E and other test standards.

Technical Parameter:

Equipment performance:

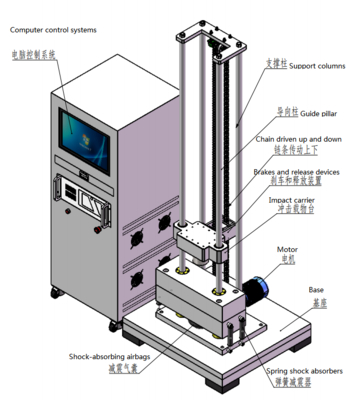

The main introduction of the impact machine

1. Working platform: High strength imported aluminium alloy working platform.

2. Lifting mechanism: motor driven ball screw lifts the working platform.

3. Lifting height control: The lifting height is measured by the photoelectric encoder assembly installed on the base, the photoelectric encoder measurement has high precision, strong anti-interference ability and high reliability, which ensures the repeatability of the impact.

4. Braking system: using pneumatic brake and strong friction brake to prevent secondary impact braking function, preventing secondary rebound

5.Buffer system: effectively reduce the impact of the impact test on the ground, the design of the self-buffer system, consisting of base, damper, air bag.
